CIP (Clean-in-Place) TYPE PRODUCT RANGE
CLEARSEP
TM CANDLE
FILTER
CLEARSEP
TM TURBO EDGE
FILTER
CLEARSEP
TM
AUTOMATIC
SELF-CLEANING FILTER (SCF)
CLEARSEP
TM AUTOMATIC
BACK-FLUSHING FILTER (SBF)
CLEARSEP TM
PRESSURE LEAF FILTER
CLEARSEP'TM
DSM SCREEN ('COANDA EFFECT' STATIC SCREEN)
CLEARSEP'TM
WELDED WEDGE WIRE CANDLE FILTER
Non-CIP
(Clean-in-Place) TYPE PRODUCT RANGE
CLEARSEP
TM SINGLE,
MULTIBAG FILTER
CLEARSEP
TM SINGLE
/ DUPLEX FILTER
CLEARSEP TM HORIZONTAL
PLATE FILTER
CLEARSEP TM WEDGE
WIRE BASKET FILTER
CLEARSEP'TM
CARTRIDGE FILTER
CLEARSEP'TM
IN-LINE BASKET FILTER
Note:
Not all products are featured here. For more information
on all the products including those featured in this site
mail us today.
|

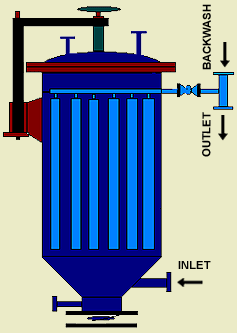

CLEARSEP'TM
CANDLE FILTER
FEATURES
- No
moving parts
- Leakproof
tongue & groove body flange joint
- Designed
for blowback / backwashing
- Permanent
candles with replaceable filter medium
- 'Bottoms-to-top'
flow for uniform cake formation
- Completely
closed system
ADVANTAGES
- Safe
and hygienic operation
- Complete
process and operator safety
- Quick
turnaround time
- Flexible
filtration rating in the same equipment
- Higher
cake holding capacity
- Least
pressure drop, longer run time
- Zero
emission to environment
|
 |
AVAILABILITY RANGE
|
HOUSING |
CANDLES |
MEDIUM |
SIZES |
SERVICE
RANGE |
All
grades of Stainless steel, Carbon Steel,
MSRL, PTFE Coated etc
|
All
grades of Stainless steel, Carbon steel, Polypropylene,
PVC, CPVC etc. |
Stainless
steel, PP, Nylon, Polyester, Cotton, PTFE coated,
Antistatic types etc. |
0.5
M2 to
40 M2 in single unit
|
Upto
30 Kg/cm2g,
Upto 250deg
C
Less than one micron |
Note.:
Conditions apply, consult us for more details, all trade
marks acknowledged
APPLICATION
- Recovery
of catalysts, like Nickel, Platinum, Palladium etc.
- Removal
of activated carbon, charcoal in pharma plants
- Bleaching
earth removal in Vegetable oil plants
- Resin
filtration
- All
types of polishing applications
- Filtration
of hazardous liquids and many more.
For
your application, mail us with details info@clearsep.com
|
| For
precoat filtration system and complete catalyst
recovery system using 'Clearsep' Candle Filter
mail us today with your application details |
|
OPTIONS
AVAILABLE
|
|
- Fully
automated Candle Filtration system
|
- Skid
mounted Candle Filters
|
- Zero
heel volume Candle Filters
|
|
'CLEARSEP'TM
TURBO EDGE FILTER
FEATURES
- Simple
inline installation
- All
metallic Wedge wire filter element
- Quick
opening type body flange joints
- Easy
to clean modular 'scraper-element' assembly
- Continuous
cleaning of filtering surface
- Sanitary
type construction
ADVANTAGES
- Safe
and hygienic operation
- Complete
process and operator safety
- Aids
mixing along with filtration
- Minimum
maintenance
- Small
foot print, least space occupation
- Zero
emission to environment
|
 |
AVAILABILITY
RANGE
|
HOUSING |
FILTER
ELEMENT |
SCRAPER |
SIZES |
SERVICE
RANGE |
| All
grades of Stainless steel, Carbon steel |
All
grades of stainless steel |
PP,
Food grade nylon, different grades of stainless steel |
100
Kgs/hr to 8000Kgs/hr feed in single unit |
Upto
10Kg/cm2g,
Upto 220deg C
80 microns and above |
Note.:
Conditions apply, consult us for more details
APPLICATION
Filtration
of viscous fluids like, dental cream, shaving cream, jelly,
balms, cold creams, gums & adhesives and many more.
For
your application, mail us with details info@clearsep.com
OPTIONS
AVAILABLE
- Jacketed
Turbo Edge Filters
|
- Trolley
mounted Turbo Edge Filters
|
- Fully
automated Turbo Edge Filters
|
|

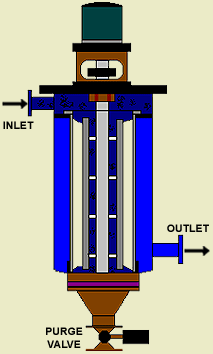

'CLEARSEP'TM
AUTOMATIC SELF-CLEANING FILTER (SCF)
|
FEATURES
- Motor
driven, low RPM
- 'Power
save' mode operation
- Operation
monitored by PLC based panel
- Welded
wedge wire filtering element
- Filtering
surface cleaned by rotating brush
- Completely
closed system
ADVANTAGES
-
Safe and hygienic operation
- Complete
process and operator safety
- Continuous
unattended operation
- Small
foot print, least space occupation
- Minimum
maintenance
- Zero
emission to environment
|
|
|
AVAILABILITY RANGE
|
HOUSING |
FILTER
ELEMENT |
BRUSH |
SIZES |
SERVICE
RANGE |
All
grades of Stainless steel, Carbon Steel,
MSRL, PTFE Coated etc.
|
All
grades of Stainless steel |
PTFE,
Nylon, Polypropylene |
1.0
M3/Hr to
500.0 M3/Hr in single unit
|
Upto
30 Kg/cm2g,
Upto 220deg C
50 microns and above
|
Note.:
Conditions apply, consult us for more details, all trade
marks acknowledged
APPLICATION
Cooling
water filtration, Side stream filtration, Condensate water
filtration, Effluent water thickening, Mixed juice purification
in cane sugar plants, Column bottoms purification, Clarification
of all low solids/high flow applications.
For
your application, mail us with details info@clearsep.com
OPTIONS
AVAILABLE
|
|
- SCF
with flame proof drives
|
|
|
|

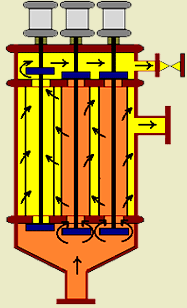

'CLEARSEP'
TM
AUTOMATIC
BACKFLUSHING FILTER (SBF)
|
FEATURES
- Multiple
Piston operated type, no electric power
- Continuous
filtration
- Operation
monitored by PLC based panel
- Welded
wedge wire filtering element
- Filtering
surface backwashed by filtered liquid
- DP
/ Preset timer based automatic backflushing
ADVANTAGES
- Safe
and hygienic operation
- Complete
process and operator safety
- Continuous
unattended operation
- Small
foot print, least space occupation
- Minimum
maintenance
- Zero
emission to environment
|
 |
AVAILABILITY
RANGE
|
HOUSING |
FILTER
ELEMENT |
CLEANING
DISC |
SIZES |
SERVICE
RANGE |
| All
grades of Stainless steel, Carbon Steel, |
All
grades of Stainless steel, |
PTFE,
Nylon, Polypropylene |
1.0
M3/Hr to
500.0 M3/Hr in single unit
|
Upto
10 Kg/cm2g,
Upto 120deg C
50 microns and above |
Note.:
Conditions apply, consult us for more details, all trade
marks acknowledged.
APPLICATION
Cooling water filtration, Side stream filtration, Condensate
water filtration, Seawater /Lake water filtration, Column
bottoms purification, Clarification of all low solids/high
flow applications.
For
your application, mail us with details info@clearsep.com
|
'CLEARSEP'TM
SINGLE / MULTIBAG FILTER
FEATURES
- Simple
surface filtration equipment
- Inline
installation
- Inside
to outside flow
- Bags
supported by perforated basket
- Static
sealing between unfiltered & filtered liquid
ADVANTAGES
- Bags
replacement without the help of any tools
- Quick
opening type body flange joints
- Bag
replacement without disturbing the pipelines
- Solids
retained in the bag, easy for disposal
- Minimum
maintenance
|
 |
AVAILABILITY
RANGE
|
HOUSING |
FILTER
ELEMENT |
SIZES |
SERVICE
RANGE |
| All
grades of Stainless steel, Carbon Steel, PTFE coated |
Nylon,
Polypropylene, Polyester, Cotton, PTFE coated bags,
antistatic bags and also in wiremesh baskets |
0.5
M2 to
6.0 M2 in single unit
|
Upto
30 Kg/cm2,
Upto 220deg C
One micron and above |
Note.:
Conditions apply, consult us for more details, all trade
marks acknowledged
APPLICATION
Polishing
of vegetable oils, Lubricating oils filtration, Process
water Solvents, Clarification of all low solids/high flow
applications.
For
your application, mail us with details info@clearsep.com
OPTIONS
AVAILABLE
- Jacketed
BAG Filters
- BAG
Filters with Wedge Wire baskets (for 50 microns &
above only)
|
'CLEARSEP'TM
SINGLE & DUPLEX FILTER
FEATURES
- Simple
surface filtration equipment
- Three
way valve for quick-change over
- Inside
to outside flow
- Triclover
type body joint
- Static
sealing between unfiltered & filtered liquid
ADVANTAGES
- Bags
replacement without the help of any tools
- Quick
filter element replacement
- Wide
choice of filter element for the same housing
- Solids
retained in the bag, easy for disposal
- Minimum
maintenance
|
 |
AVAILABILITY
RANGE
|
HOUSING |
FILTER
ELEMENT |
SIZES |
SERVICE
RANGE |
| All
grades of Stainless steel, Carbon Steel |
Nylon,
Polypropylene, Polyester, Cotton, PTFE coated bags,
anti-static bags and also in wiremesh baskets |
15
NB to
150 NB
|
Upto
30 Kg/cm2g,
Upto 220deg C
One micron and above |
Note.:
Conditions apply, consult us for more details, all trademarks
acknowledged
APPLICATION
Pump
suctions, Feeding systems, Process water, All incoming liquid
raw material lines, Liquid filling lines, Fine polishing,
In all low solids/high flow applications.
For
your application, mail us with details info@clearsep.com
OPTIONS
AVAILABLE
- Jacketed
Single & Duplex Filters
- Single
& Duplex Filters with Wedge Wire elements (for
50 microns & above only)
- Single
& Duplex Filters with outside to inside flow
|
|
COMPONENTS & ACCESSORIES FOR FILTRATION
/ SEPARATION EQUIPMENT
If
you are developing any filtration / separation equipment
or want to replace / modify your existing equipment you
can get advice and components from us.
The
items which we may mot manufacture ourselves will be sourced
from the best and reliable manufacturers in the world at
most attractive prices. We can supply the same in its original
form or with value addition as per your requirement. Bottom
line is you surely gain when you deal with us.
Just
to mention a few of the items you can get from us and not
to mention, at highly affordable prices,
-
Filter cloths in PP, Polyester, Cotton, Nylon
- Anti-static
filter cloths
- Readymade
filter bags
- Welded
wedge wire elements
Candles, Baskets, Resin traps, Support grids, Laterals,
Under drain pipes, Screen drums, Sieve bends, Any welded
wedge wire components made as per your drawing
- Wiremesh
elements
Candles, Baskets, Resin traps, Discs, Leaves
- Pneumatic
cylinders
- Electro-pneumatic
valves
- Tightshut-off
Butter fly valves and many more.
For your requirement and our immediate response mail
us now info@clearsep.com
|
